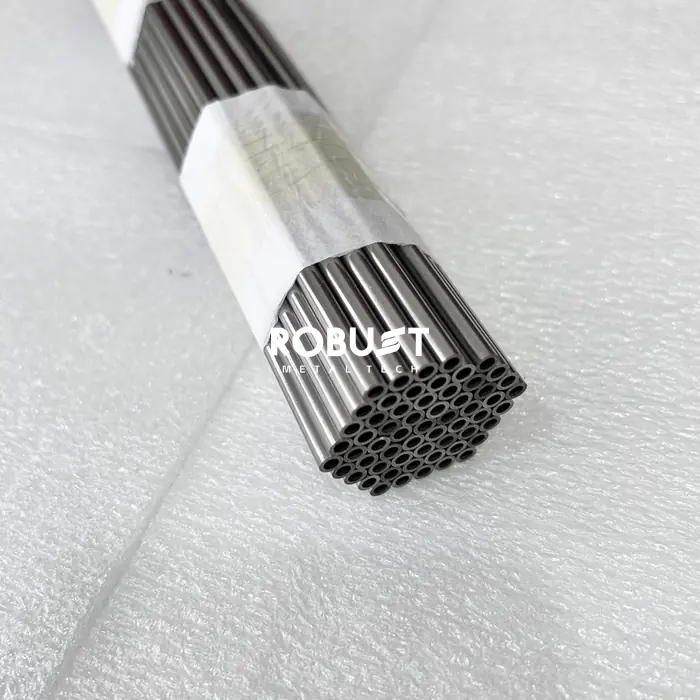

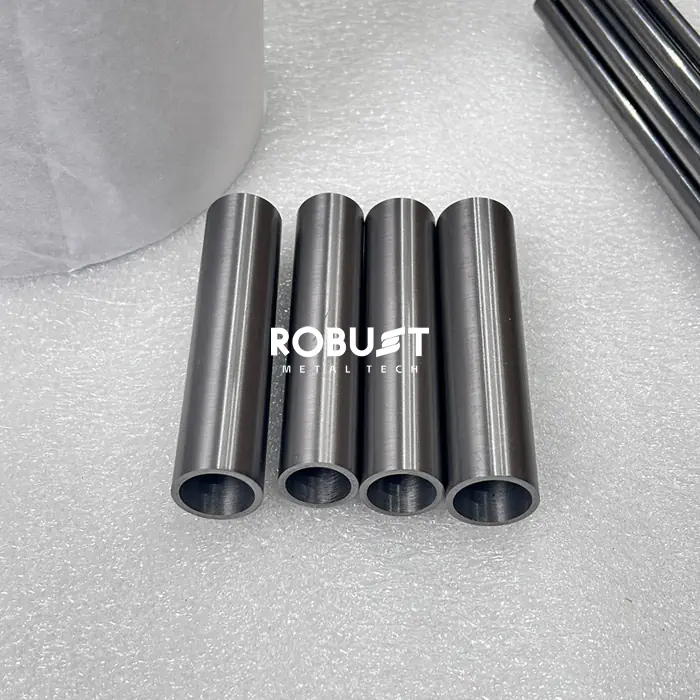

Tantalum Tube and Pipe (ASTM B521) Seamless and Welded Types for Industrial Applications
-
Tantalum tubes and pipes are high-performance ASTM B521 refractory metal products designed for extreme chemical and thermal environments. With exceptional corrosion resistance against boiling acids and strong chemical media, they ensure safe and stable fluid transport in critical industrial systems. Available in seamless and welded forms, tantalum tubing is widely used in chemical processing, heat exchangers, pharmaceutical production, and vacuum systems. Its high thermal conductivity, excellent ductility, and self-healing oxide layer provide long service life and zero contamination risk, making it ideal for demanding applications requiring maximum reliability, purity, and structural integrity.
Description
Tantalum Tube / Pipe Overview
Tantalum tubes and pipes are high-performance fluid transport materials.
They are designed for extremely corrosive and high-temperature environments.
They provide safe and stable handling of aggressive chemical media.
Compared with steel or titanium, tantalum offers near-total chemical inertness.
It is widely used in chemical plants and pharmaceutical systems.
It ensures zero leakage risk under extreme operating conditions.
1. Manufacturing Types (ASTM B521 Standard)
Seamless Tantalum Tubes
Manufactured by gun-drilling or cold drawing from solid billets.
No weld seams, ensuring maximum strength and pressure resistance.
Ideal for high-pressure and ultra-pure chemical systems.
Welded Tantalum Tubes
Formed by rolling sheet and welding longitudinal seams.
Lower cost and suitable for large diameter applications.
Used in heat exchangers and moderate pressure systems.
2. Key Engineering Properties
Extreme Corrosion Resistance
Tantalum resists almost all acids including nitric and sulfuric acid.
Only hydrofluoric acid can attack its protective oxide layer.
Excellent Thermal Conductivity
Unlike ceramics or glass, tantalum transfers heat efficiently.
It maintains performance under extreme temperature conditions.
Zero Contamination Surface
Self-healing Ta2O5 layer prevents fouling and scaling.
Ensures high purity in pharmaceutical and semiconductor systems.
3. Common Material Grades (UNS)
| Grade | Material | Application Benefit |
| R05200 | Pure Tantalum (Melted) | Maximum ductility and corrosion resistance |
| R05400 | Pure Tantalum (Sintered) | Uniform grain structure for electronics |
| R05252 | Ta-2.5W Alloy | High strength for heat exchangers |
| R05255 | Ta-10W Alloy | High-temperature aerospace applications |
4. Industrial Applications
Chemical Heat Exchangers
Used in bayonet heaters and condenser systems.
Handles aggressive acids in processing and recycling systems.
Thermowells & Protective Sheaths
Protects temperature sensors inside corrosive reactors.
Prevents direct acid contact and equipment failure.
Tantalum-Lined Steel Pipes
Combines steel strength with tantalum corrosion resistance.
Used in large-scale industrial pipeline systems.
Video
FAQs
FAQ – Tantalum Tube & Pipe
Q: Why is tantalum tube wall thickness so thin?
Because tantalum is expensive and very dense, wall thickness is minimized.
Typical range is 0.38–0.51 mm while still maintaining pressure strength.
Q: Can tantalum tubing be bent or flared?
Yes, pure tantalum is highly ductile and can be formed at room temperature.
However, it requires lubrication and polished tooling to avoid galling.
Q: What quality tests are required?
Hydrostatic testing ensures pressure safety.
Ultrasonic or eddy current testing checks internal defects and weld quality.
Flaring and flattening tests verify ductility and installation reliability.
