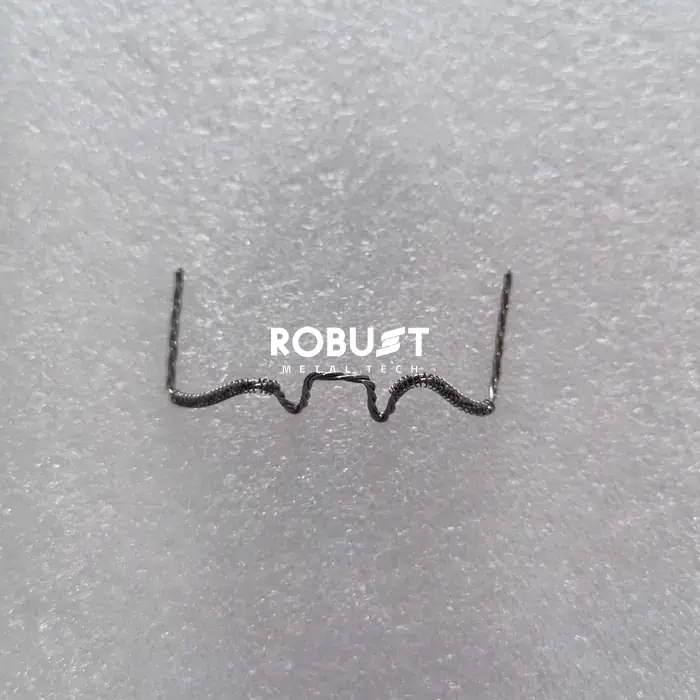

PVD Coated Tungsten Wire for Vacuum Evaporation and High Temperature Heating
-
PVD coated tungsten wire is a high-performance stranded tungsten material designed for vacuum evaporation and high-temperature heating applications. It offers excellent thermal stability, strong mechanical flexibility, and reliable liquid metal retention during thermal deposition processes. Widely used in vacuum metallization, semiconductor coating, and industrial furnace systems requiring stable and efficient heating performance under extreme conditions
Description
1. Why Twist Tungsten Wire? Structural Advantages
Single-strand tungsten wire can become notoriously brittle and limited in capacity when exposed to intense heat.
Twisting multiple strands yields four critical engineering benefits:
Capillary Effect (Liquid Retention)
In vacuum deposition, molten low-melting-point metals such as aluminum are held within the twisted valleys of the wire.
This prevents dripping and ensures controlled evaporation through capillary action.
Larger Surface Area
Stranding multiple wires increases surface area significantly compared to a single wire of equal diameter.
This improves thermal radiation efficiency and evaporant material capacity.
Enhanced Thermal Uniformity
Current distribution becomes more even across strands.
This reduces hot spots and improves filament lifespan.
Superior Mechanical Flexibility
Twisted structure redistributes mechanical stress effectively.
It allows bending and coiling without breaking under controlled conditions.
2. Common Stranded Configurations
Twisted tungsten wire is categorized by strand count and diameter.
2-Strand (2-Ply): Balanced flexibility with deep capillary grooves.
3-Strand (3-Ply): Stable triangular structure with strong liquid retention.
4-Strand to 9-Strand+: Heavy-duty industrial evaporation and heating systems.
Example RFQ: 3-Strand x 0.76mm refers to three wires of 0.76mm each twisted into one cord.
3. Primary Applications
| Industry / Process | Application |
| Vacuum Metallization (Coating) | Used in thermal evaporation chambers for coating plastics, automotive trims, mirrors, packaging films, and decorative surfaces. |
| Semiconductor & Optics | Used for thin-film deposition on glass lenses, optical coatings, and electronic substrates. |
| High-Temperature Furnaces | Used as mesh heating elements operating above 2000°C under vacuum or protective gas environments. |
Video
Image Gallery
FAQs
4. Frequently Asked Questions for Buyers
Why do twisted tungsten filaments fail prematurely in vacuum chambers?
Early failure is often caused by chemical attack from molten evaporation materials.
Aluminum, copper, or gold can gradually erode tungsten strands over repeated cycles.
Using doped or non-sag tungsten improves resistance to grain growth and extends service life.
What surface finish is required for vacuum deposition filaments?
Chemical Cleaned (White/Matte Finish) is required.
As-drawn black tungsten contains graphite and lubricants that outgas in vacuum environments.
What parameters are required for quotation?
Strand count (2-strand, 3-strand, 4-strand).
Single wire diameter.
Twist pitch (affects resistance and structure).
Purity grade (≥99.95% tungsten or non-sag grade).
Form factor (bulk spool or pre-cut filaments).
