Twisted Tungsten Wire for Industrial Heating and Vacuum Coating

Coiled Twisted Tungsten Wire for Vacuum Metallization and Heating Systems

Coiled Twisted Tungsten Wire (also known as stranded or braided tungsten wire) consists of two or more individual strands of tungsten wire precisely wrapped around each other to form a unified, heavy-duty cord.

While individual tungsten wires are highly effective for fine electronics and testing probes, twisting multiple strands together unlocks distinct mechanical and thermal advantages.

This configuration is the gold standard for thermal vacuum evaporation (vacuum metallization) and heavy-duty industrial heating elements.

1. Why Twist Tungsten Wire? (Structural Advantages)

Single-strand tungsten wire can become notoriously brittle and limited in capacity when exposed to intense heat.

Twisting multiple strands yields four critical engineering benefits:

The Capillary Effect (Liquid Retention)

When used in vacuum deposition, a lower-melting-point metal (like aluminum) is hung on the tungsten filament.

When heated, that metal melts into a liquid.

A single smooth wire would cause the molten metal to drip off instantly.

The twisted "valleys" between the strands act like a sponge, using capillary action to hold the liquid metal in place so it can cleanly evaporate.

Larger Surface Area

Stranding multiple fine wires together creates a significantly higher surface area than a single thick wire of equal total diameter.

This maximizes thermal radiation and increases the amount of evaporant material the wire can hold.

Enhanced Thermal Uniformity

The interlocking strand matrix distributes electric current more evenly.

This prevents localized "hot spots" that cause premature filament burnouts.

Superior Mechanical Flexibility

Pure tungsten is highly brittle at room temperature.

A twisted wire structure redistributes physical stress.

It can be bent, coiled, and shaped into complex heating geometries much more safely than a single thick rigid rod.

2. Common Stranded Configurations

Suppliers categorize twisted tungsten wire by the number of strands (plies) and individual wire diameters.

Typical Configurations

2-Strand (2-Ply): Two wires twisted together. Offers a balance of flexibility and a deep capillary groove.

3-Strand (3-Ply): Highly stable triangular cross-section; excellent liquid retention.

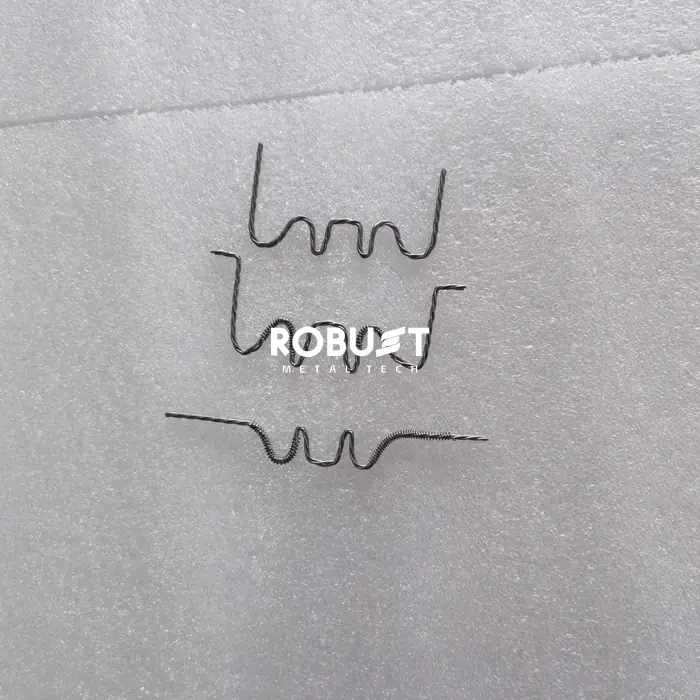

4-Strand to 9-Strand+: Used for heavy-duty industrial evaporation or wrapped around a thick central core rod to create massive heating elements.

Specifying Example: 3-Strand x 0.76mm means three individual wires, each 0.76 mm in diameter, twisted into a single rope.

3. Primary Applications

 Frequently Asked Questions for Buyers

Q: Why do twisted tungsten filaments fail prematurely in vacuum chambers?

The most common cause is chemical attack (alloying) by the evaporation material.

Molten metals like aluminum, copper, or gold gradually dissolve tungsten.

Over time, strands thin out until the filament snaps.

Doped/non-sag tungsten helps slow grain-growth degradation.

Q: What surface finish is required for vacuum deposition filaments?

You must specify Chemical Cleaned (White/Matte Finish).

Standard as-drawn tungsten wire contains graphite and lubricants.

These materials outgas in vacuum and contaminate thin-film coatings.

Q: What parameters are required for quotation?

Strand Count (2-strand, 3-strand, 4-strand).

Single Wire Diameter (individual strand thickness).

Twist Pitch (length of one full rotation, affects resistance).

Purity/Grade (≥99.95% tungsten or non-sag grade).

Form Factor (bulk spool or pre-shaped filaments).
